provided by the plugin LightLibrary

A set of predefined light distribution to use in Physical Light.

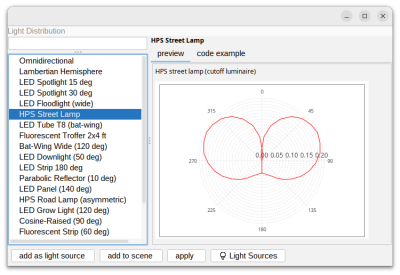

From the panel it is possible to use the following functions on a selected distribution:

• add as light source: to add as a light source to the LightExplorer
• add to scene: to create a lightNode with a physical light with selected distribution as input and add it to the current scene
• apply: apply on a selected object if possible (if the object is a light Node, or a light source). If the current light source of this object is spectral the new one will be used as light input on the spectral Light
• Light Sources: open the Light explorer

To use this IES through RGG code a set of functions can be used:

to get a LightDistribution:

iesLib("LED Floodlight (wide)")

to get a PhysicalLight object:

physicalLightLib("LED Floodlight (wide)")

to get a SpectralLight with a PhysicalLight as a source (see Spectral library).

spectralPhysicalLightLib("High-PressureSodium(HPS)","LED Floodlight (wide)")

A simple working example could be:

protected void init ()
[
 Axiom ==> LightNode().(setLight(physicalLightLib("LED Floodlight (wide)")));
]
